Magic Spanner Scamp

£1,500.00

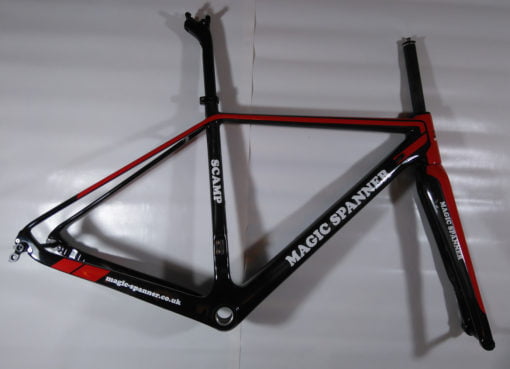

Full carbon cyclocross frame with custom painting to give you a truly unique bike.

This frame is custom made to your order and will take about 6 to 8 weeks to be completed and sent to you.

Clear
SKU: MSS01 Categories: ,

Description

This frameset has been specifically designed for cyclocross with wider clearance around the forks and rear stays for improved mud clearance along with flat underside of top tube for added comfort when carrying the bike. The T700 carbon frame reinforced with T1000 carbon makes it very stiff and very strong so it can take all that cyclocross racing has to throw at it. The Scamp features new flat mount for disc brakes so they are stiffer and provide more stopping power than post mount disc brakes along with thru axles on both front and rear wheels. The forks are designed to use a 140mm or 160mm rotor and the rear is for 140mm rotor only. Internal cable routing provides a clean look, can be used with mechanical or Di2 gearing.

This frame can be customised like no other with lots of options so you can have it just the way you want it. Any special requests or colours not listed please contact us.

We will send you the design with your colour choices on it before the frame is made so you can see what it looks like.



Frameset weight (frame, fork, seatpost) – 1620g

Frame weight – 1040g

Fork weight – 390g



Specifications

Frame – T700 carbon reinforced with T1000, English BB68, 12mm x 142mm thru axle, flat mount disc brake.

Fork – T700 carbon reinforced with T1000, 15mm x 100mm thru axle, flat mount disc brake.

Seatpost – T700 carbon, 27.2mm, alloy clamp.

Headset – Integrated 1″1/8 top, 1″1/2 bottom



What’s included?

Frame, fork, seatpost, seatpost clamp, 15mm x 100mm thru axle, 12mm x 142mm thru axle, headset and a spare rear mech hanger.



Geometry



Colours



Technology



This frame is custom made to your order and will take about 6 to 8 weeks to be completed and sent to you.

Colours may vary slightly depending on screen settings.

Conforms to EN14781 safety standards.

Includes 2 year warranty from date of purchase.

Additional information

Brand

Magic Spanner

Discipline

Cyclocross

Material

Carbon

Size

50, 52, 54, 56, 58

Design

Scamp design, Solid colour

Frame colour 1

Black, Brown, Dark Blue, Green, Grey, Light Blue, NO PAINT, Orange, Pink, Purple, Red, White, Yellow

Decal colour

Black, Brown, Dark Blue, Green, Grey, Light Blue, Orange, Pink, Purple, Red, White, Yellow

Spanner colour

Black, Red, White

Finish

UD gloss, 3K gloss, 3K matte, UD matte
